Intelligent Solder Paste Cabinet TS-5000

TS-5000 is a fully automated solder paste storage with an integrated design and multiple functions: automatic refrigeration, rewarming, stirring, scheduling, networking and traceability.

Product Introduction

TS-5000 Solder paste red glue intelligent hybrid management cabinet——Dual-material storage solution

innovatively supports hybrid storage of solder paste and red glue, meeting diverse material needs in complex production processes

●AI vision sorting system： Automatically identifies solder paste/red glue labels and intelligently allocates the optimal storage location.

●Dual-material traceability.：Independently tracks batch numbers, expiration dates and usage records of solder paste & red glue, with MES integration support.

●Parallel operation: Simultaneously rewarm solder paste (54 jars) + red glue (25 syringes), reducing production line wait time.

●Triple safety protection：Dual authentication (fingerprint & facial recognition) + temperature/humidity alarm + emergency thermal protection during power outages (optional UPS support).

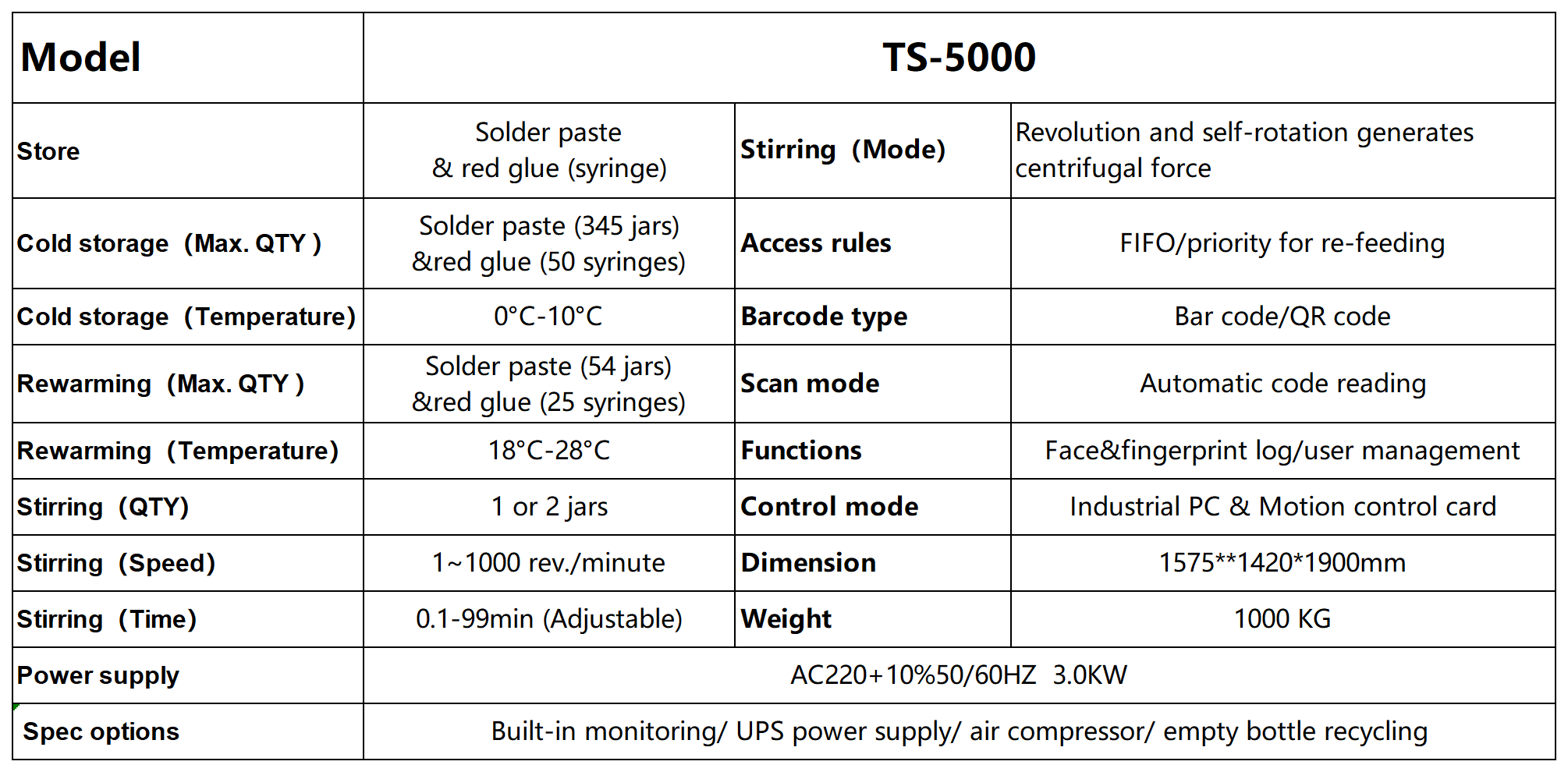

Classification	Model	TS-5000
Store	Type	Solder paste & red glue (syringe)
Cold storage	Max. QTY	Solder paste (345 jars)&red glue (50 syringes)
Cold storage	Temperature	0°C-10°C
Rewarming	Max. QTY	Solder paste (54 jars)&red glue (25 syringes)
Rewarming	Temperature	18°C-28°C
Stirring	QTY	1 or 2 jars
	Speed	1~1000 rev./minute
	Time	0.1-99h (Adjustable)
	Mode	Revolution and self-rotation generates centrifugal force
Feeding & discharge	Access rules	FIFO/priority for re-feeding
	Barcode type	Bar code/QR code
	Scan mode	Automatic code reading
Other	Functions	Face&fingerprint log/user management
	Control mode	Industrial PC & Motion control card
	Dimension	1575*14201900mm
	Weight	1000 KG
	Power supply	AC220±10% 50/60HZ 3.0KW
Spec options		Built-in monitoringvuPs power supply/Air compressor/Empty jar recycling
