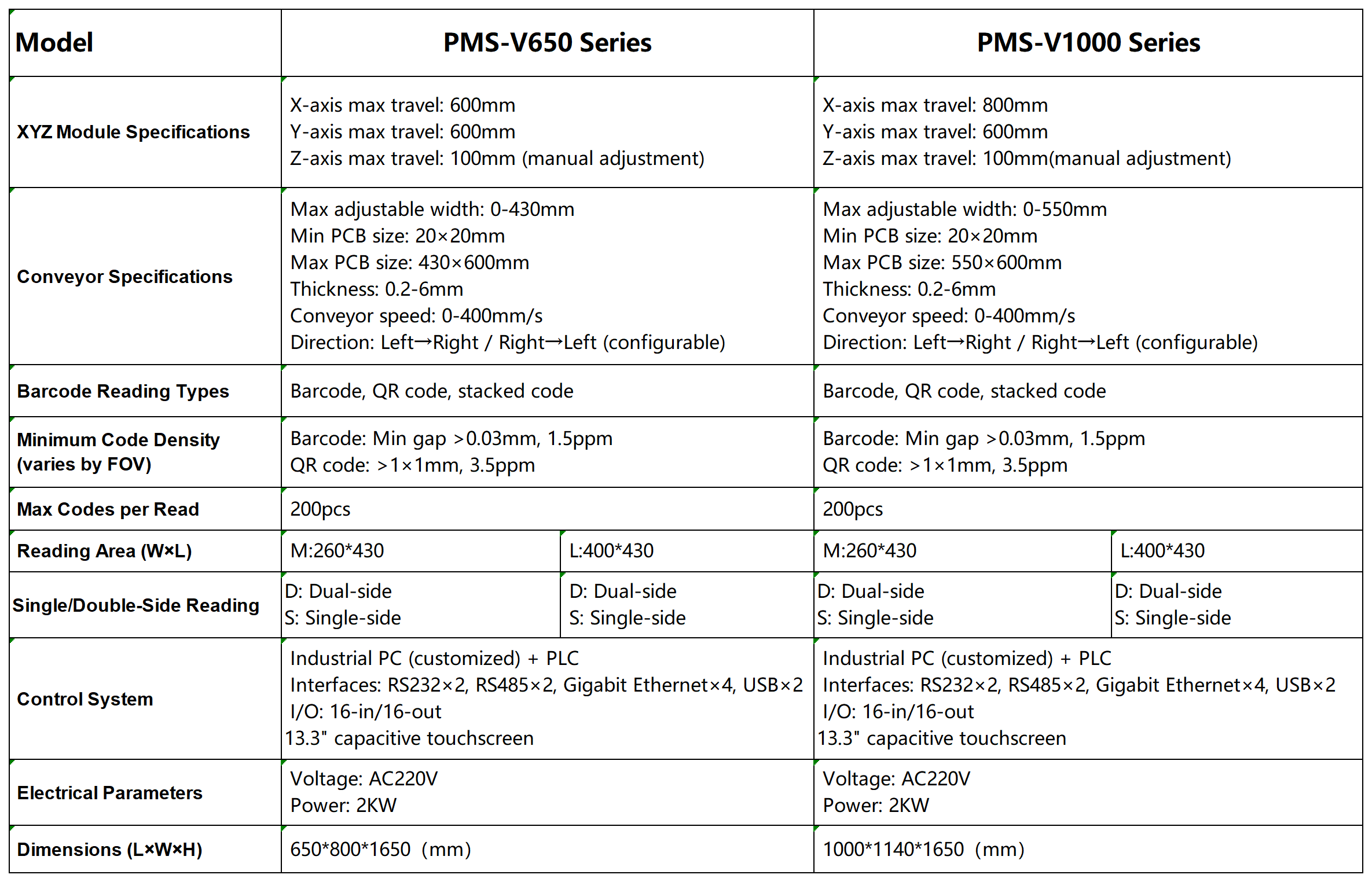

XYZ Module Specifications

X-axis max travel: 600mm

Y-axis max travel: 600mm

Z-axis max travel: 100mm (manual adjustment)

X-axis max travel: 800mm

Y-axis max travel: 600mm

Z-axis max travel: 100mm (manual adjustment)

Conveyor Specifications

Max adjustable width: 0-430mm

Min PCB size: 20×20mm

Max PCB size: 430×600mm

Thickness: 0.2-6mm

Conveyor speed: 0-400mm/s

Direction: Left→Right / Right→Left

(configurable)

Max adjustable width: 0-550mm

Min PCB size: 20×20mm

Max PCB size: 550×600mm

Thickness: 0.2-6mm

Conveyor speed: 0-400mm/s

Direction: Left→Right / Right→Left (configurable)

Barcode Reading Types

Barcode, QR code, stacked code

Barcode, QR code, stacked code

Minimum Code Density

(varies by FOV)

Barcode: Min gap >0.03mm, 1.5ppm

QR code: >1×1mm, 3.5ppm

Barcode: Min gap >0.03mm, 1.5ppm

QR code: >1×1mm, 3.5ppm

Max Codes per Read

200pcs

200pcs

Reading Area (W×L)

M:260*430

L:400*430

M:260*430

L:400*430

Single/Double-Side Reading

D: Dual-side

S: Single-side

S: Single-side

D: Dual-side

S: Single-side

D: Dual-side

S: Single-side

D: Dual-side

S: Single-side

Control System

Industrial PC (customized) + PLC

Interfaces: RS232×2, RS485×2, Gigabit Ethernet×4, USB×2

I/O: 16-in/16-out

13.3" capacitive touchscreen

Industrial PC (customized) + PLC

Interfaces: RS232×2, RS485×2, Gigabit Ethernet×4, USB×2

I/O: 16-in/16-out

13.3" capacitive touchscreen

Electrical Parameters

Voltage: AC220V       Power: 2KW

Voltage: AC220V  Power: 2KW

Dimensions (L×W×H)

650*800*1650（mm）

1000*1140*1650（mm）
